Dear Friends,

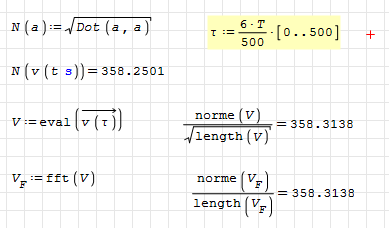

I tried to calculate the effective value of segmented voltage waveform, but failed, could you help me to fixed it? Thank you very mucn! RMS calc.sm (10.21 KiB) downloaded 380 time(s). image.png
#2 Posted: 12/9/2025 6:38:59 PM
Alvaro

Alvaro

1,081 likes in 1,754 posts.

Group: User

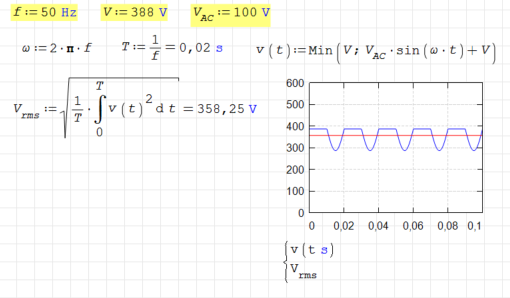

Hi. This is a way. You can see also the file RMS in this post.


Also:


RMS-example.sm (17.81 KiB) downloaded 314 time(s).

Best regards.
Alvaro.
Edited 12/9/2025 6:46:12 PM
#3 Posted: 12/10/2025 9:55:31 PM
Martin Kraska

Martin Kraska

1,334 likes in 2,249 posts.

Group: Moderator

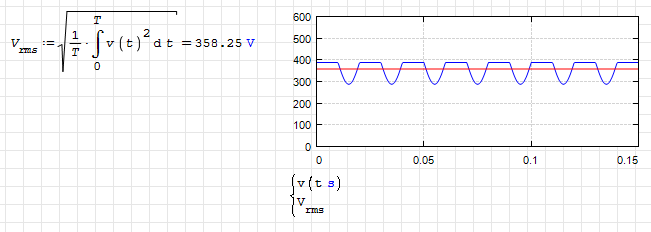

Version without killing the units:


RMS-example.sm (8.29 KiB) downloaded 314 time(s).

In the original version, just making the periodicity function unit-proof, is sufficient:

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2 users liked this post
Alvaro 12/11/2025 12:34:52 AM, liwenbus 12/11/2025 12:51:24 PM
#4 Posted: 12/11/2025 12:50:32 PM
liwenbus

liwenbus

0 likes in 7 posts.

Group: User

OH! I see! Thank you Alvaro!

Best regards.
Wen.

Wrote

Hi. This is a way. You can see also the file RMS in this post.


Also:


RMS-example.sm (17.81 KiB) downloaded 314 time(s).

Best regards.
Alvaro.

#5 Posted: 12/11/2025 12:53:13 PM
liwenbus

liwenbus

0 likes in 7 posts.

Group: User

It helps a lot, thank you very much!

Best regards.
wen.

Wrote

Version without killing the units:


RMS-example.sm (8.29 KiB) downloaded 314 time(s).

In the original version, just making the periodicity function unit-proof, is sufficient:
